Payen®

Performs Under Pressure

Produced to the standards of the world’s largest automotive manufacturers, Payen® offers one of the most comprehensive aftermarket sealing ranges consisting of gaskets, gasket sets and seals for light and commercial vehicles.

Payen brings over 100 years of sealing expertise to the Aftermarket. Every gasket is unique in terms of design and materials to suit the application requirements. Payen provides premium quality products to ensure reliable and consistent performance.

With its cylinder head, exhaust, coolant and oil system gaskets, Payen supplies the right gasket for the right job, giving you excellent sealing solutions, whatever the application.

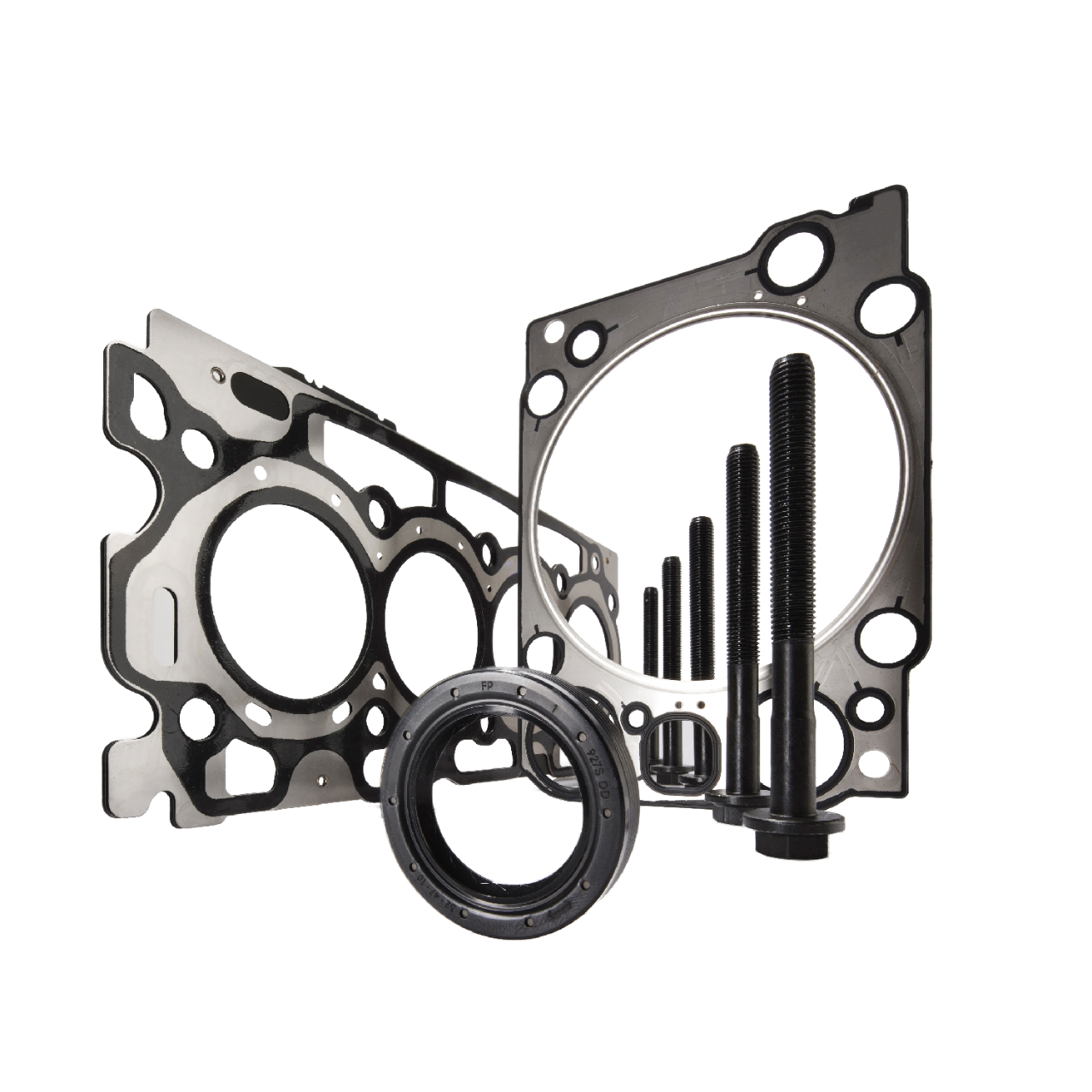

Payen Product Range

Gasket
Gasket sets
Seals
Pro-Fit range

Unique to the brand

Extensive range of gaskets and seals
Unique sealing materials developed for aftermarket conditions

History

J. Payen and Co. started between 1890 and 1895 in Lyon, France, a company for the production of washers. In 1907 they opened a branch in London, UK. After WWI cylinder head gasket manufacture was developed and the business grew during the 1930s to become a major supplier to the automotive industry. Federal-Mogul purchased Payen in 1998, eventually becoming part of DRiV^TM.

Sealing products

Sealing components are critical to the overall performance and reliability of automotive engines. As the requirements in the repair environment differ from the OE build line, Payen provides suitable technologies to ensure a successful aftermarket repair.

Gaskets

Depending on the application requirements, the primary function of a gasket is to seal gas and fluids and to also ensure the correct distribution of the clamp load. Some gaskets, such as cylinder head gaskets are designed to achieve a precise compressed thickness when fitted and can additionally manage the coolant flow between the head and block to help optimise the engine cooling system. From the top to the bottom of the engine, Payen has the correct design solution.

Features

Our unique CORIUSIM™ and CORIUSEAL™ gaskets perfectly demonstrate our understanding of what professionals are looking for in an aftermarket product. This range of green gaskets delivers excellent micro-sealability for optimum performance.

CORIUSEAL™ uses MLS (Multi-Layer Steel) technology to provide a durable and efficient sealing solution that is vital to the performance of today’s high output and lighter weight engines.

Stopper design selected to meet each application’s requirements
High-performance engineered elastomer
Optimum sealing performance
Conforms to most surface finishes on rebuilt engines
Improved anti-friction properties for reduced gasket fretting
Enhanced initial gas sealing on start-up

CORIUSIM™ uses premium fibre materials suitable for sealing older engines. These technologies are tailored for the repair environment and help to achieve a perfect seal.

Optimum sealing on rough surfaces
Ready to conform to head and block surfaces
Increased micro-sealability through the use of silicone surface coatings
Superior performance and durability
No use of organic solvents
Helps minimize bore distortion to reduce oil consumption and optimize piston ring performance

STEEL ELASTOMER is commonly used for heavy-duty diesel engines. The elastomeric materials are moulded to a steel carrier which ensures a long term and robust seal.

Quick look benefits – Gaskets

Benefit 1

Gasket materials selected to suit individual sealing application requirements

Benefit 2

Optimized sealing performance and enhanced durability

Benefit 3

Expert tip: Ensure surfaces are clean and flat before installation. Follow engine manufacturer's guidelines to ensure correct assembly.

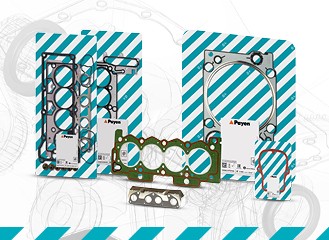

Gasket sets

Payen engine repair sets give technicians not only the gaskets and seals the job requires, but the best technology available. The premium gasket materials are selected to suit all the sealing requirements, including air, oil, fuel, combustion gas and coolant.

Product range

Head sets: for an upper engine repair
Conversion sets: for bottom engine repair
Full sets: for a complete engine overhaul

Quick look benefits – Gasket sets

Benefit 1

Contains all the gaskets and seals you need for a professional repair of the top or bottom part of the engine

Benefit 2

Kit content images available online to ensure correct set selection

Benefit 3

Components clearly visible in the packed kit

Engine seals

Payen offers dynamic seals for both light and commercial vehicles. The extensive range includes valve stem seals, camshaft and crankshaft seals, integrated seals and differential seals.

Features

Oil seal material and design optimized for each engine application
Resistance to modern lubricants
High quality elastomeric materials to provide the required temperature resistance during service

Quick look benefits – Engine seals

Benefit 1

Provides excellent resilience to aggressive oil conditions, especially with longer service intervals on modern engines

Benefit 2

Depending on application requirements, many oil seals incorporate a dust lip to prevent dirt ingress to prolong the life of the seal

Benefit 3

Expert tip: For PTFE seals: Do NOT lubricate the sealing lip. Allow 4 hours for the seal to conform to the shaft

Pro-Fit range

The Payen Pro-Fit range offers you professional service products that assist you to carry out a correct installation.

Features

Sealing compound: for temperatures up to 300°C
Snap-ups™: keep the oil pan and gasket in place while inserting the bolts
Washer box: quick and easy washer selection
Multi-purpose gasket materials: a sealing solution for non-standard applications
